Re: My "New" Mini Max FS35 J/P - Cian - 10-19-2015
Very
RE: My "New" Mini Max FS35 J/P - BRCastle-Gil - 01-13-2021
Hi John,
Can you post a picture of the knife setting jig. I am beginning an FS35 restoration project (long story that I will post in a separate thread) and in finding and preparing to assemble all the parts of a machine that has been partially disassembled for many years, I realized that I have no clue what the knife setting jig actually looks like. The manual that I downloaded refers to photo 11, but it is so dark and distorted, that I can’t pick out the slightest detail.
Thanks,
Gil
RE: My "New" Mini Max FS35 J/P - jteneyck - 01-13-2021

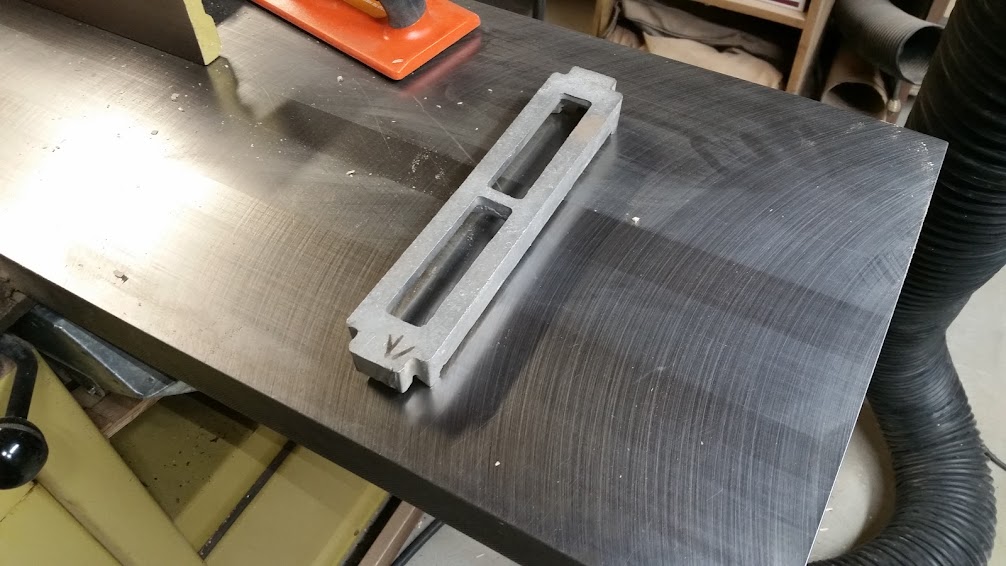

I was surprised to see this old thread again; the search function must still work. Here are couple of photos of the knife setting jig.
![[Image: ACtC-3cK3ZbHi-x0wVBwp0P8JKZlyzsZTmVGSK8M...authuser=0]](https://lh3.googleusercontent.com/pw/ACtC-3cK3ZbHi-x0wVBwp0P8JKZlyzsZTmVGSK8MaJgPAJlrBqucFOK_Ernywf6nr0j6o8IF8iynw7I_V505SdDhoM1ISSpqUfCTG-P67bp9FdSA6SeTH9i94yQWn0xbkzuP5r6nAWQu-jHsmVH9XVk3bsKRsw=w1006-h566-no?authuser=0)
![[Image: ACtC-3f1szXP4s33ttK3jVmdqwSgeLTJo5ol_dVA...authuser=0]](https://lh3.googleusercontent.com/pw/ACtC-3f1szXP4s33ttK3jVmdqwSgeLTJo5ol_dVAZpHL0D5epzK_zgn2OThtLaEbCaUqlMXJD9pa4LHjPR7Nu-Qf8NkMw0P0oFOwGRterJJ1Df7nc_qBb3c06Va8E6JBgBROvooEBtFoCC2hqxH_TbAWRwF3tA=w1006-h566-no?authuser=0)
And here's one of the machine because it looks like the photos didn't stick with the original post.
![[Image: ACtC-3eyvLoNyNAMlWdxESiOwOirZz49ItRjcrVX...authuser=0]](https://lh3.googleusercontent.com/pw/ACtC-3eyvLoNyNAMlWdxESiOwOirZz49ItRjcrVX7S_-rjcem1LBqCHEUoffeFUR4vxXl_pDJW_jIrnaWtBnqeGZZIkJCOL_mVjKQAYmQkcTp8ZFZ3Yo5HL6XeoxEYcoJo2S7Nn9pIi3TKWFDZM_3Sp-wmtVeQ=w640-h480-no?authuser=0)
Good luck getting your machine back in operating order. The effort will be worth it; it's a great machine except a little underpowered.
John
